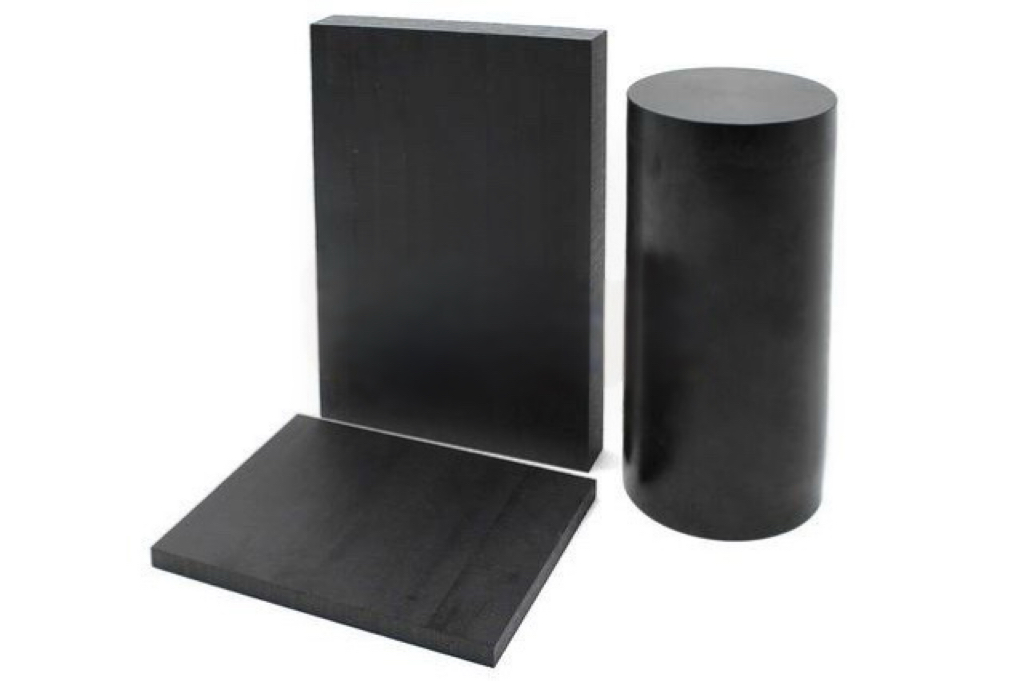

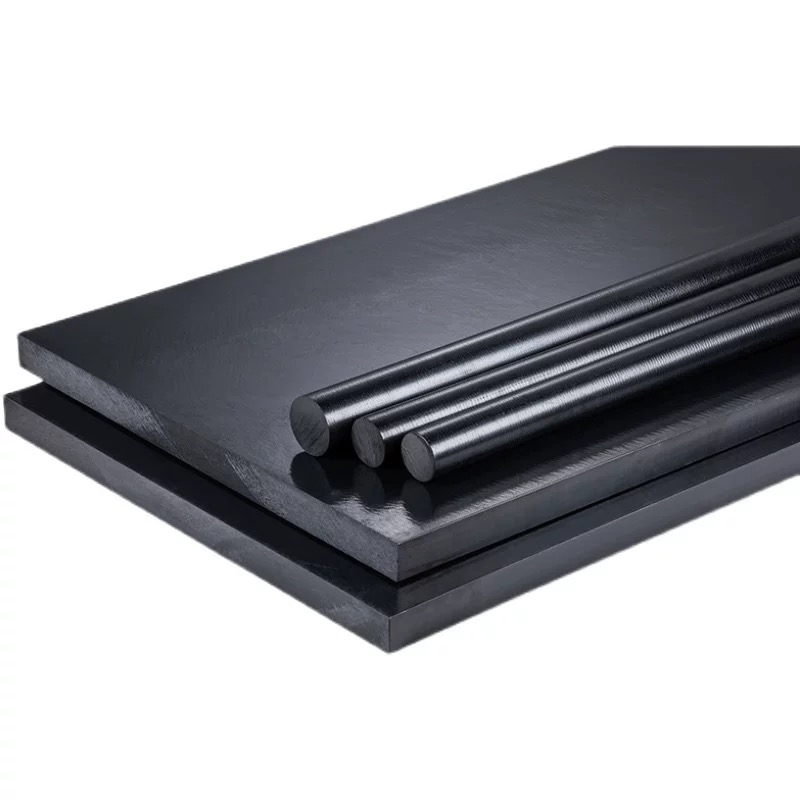

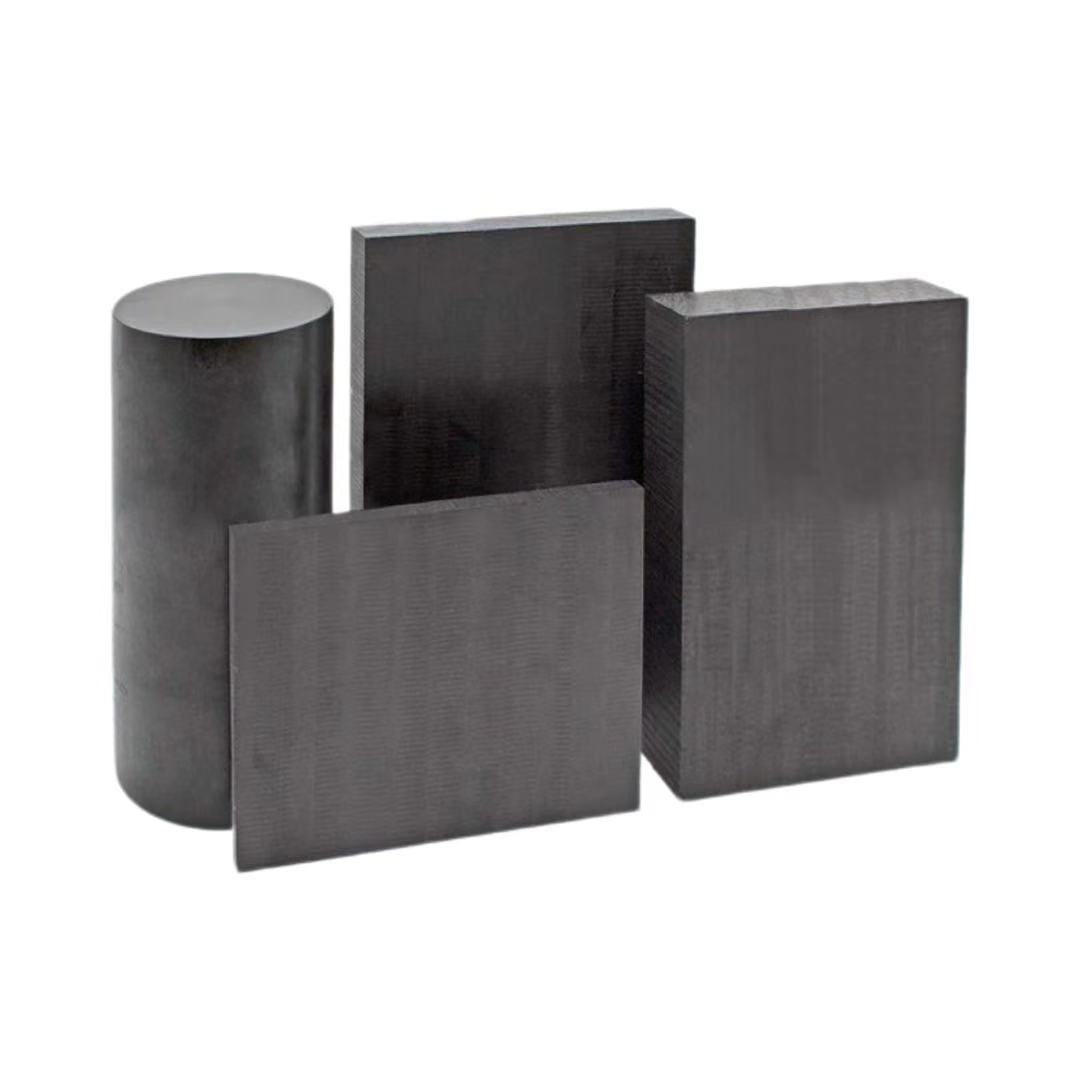

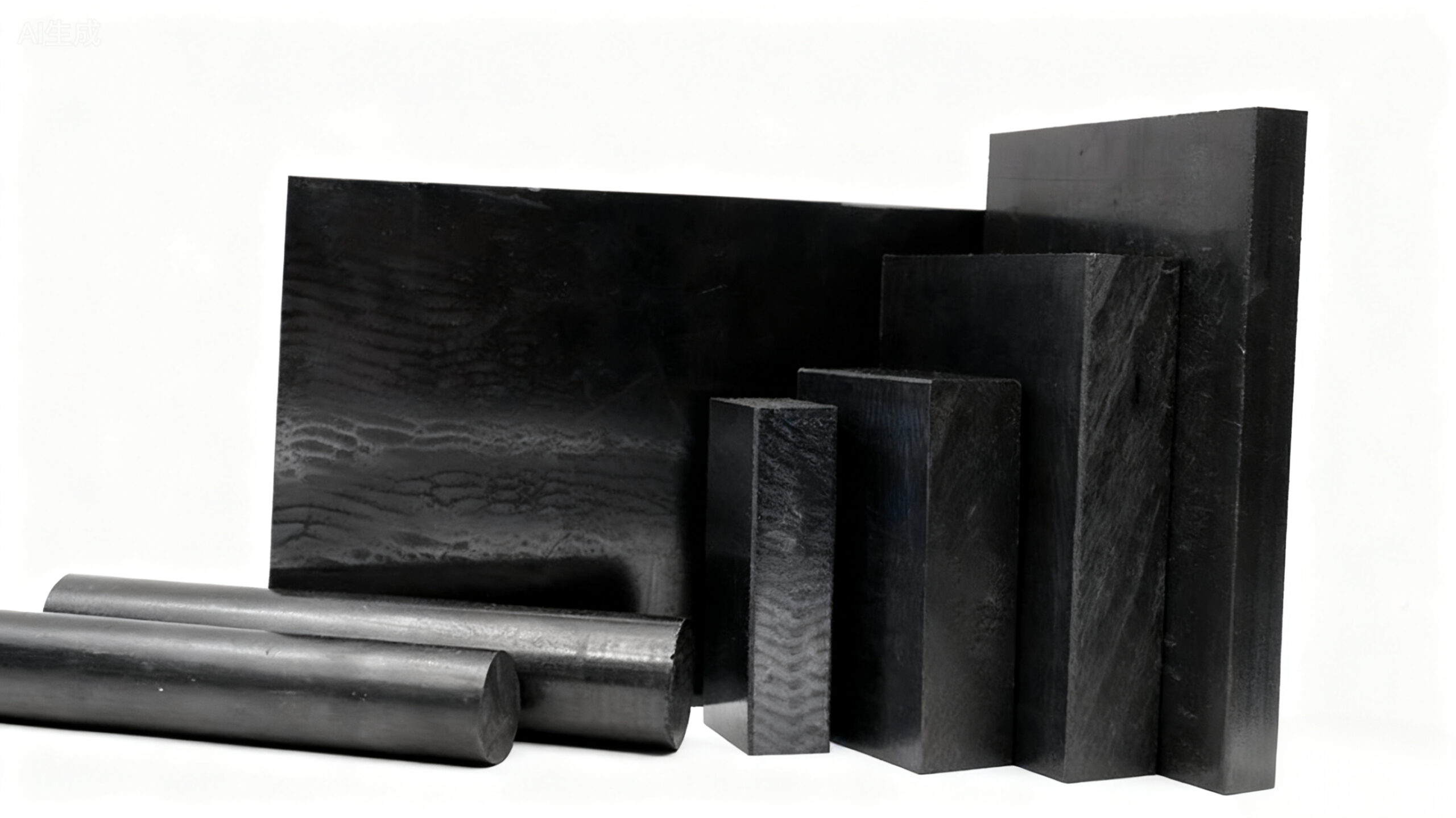

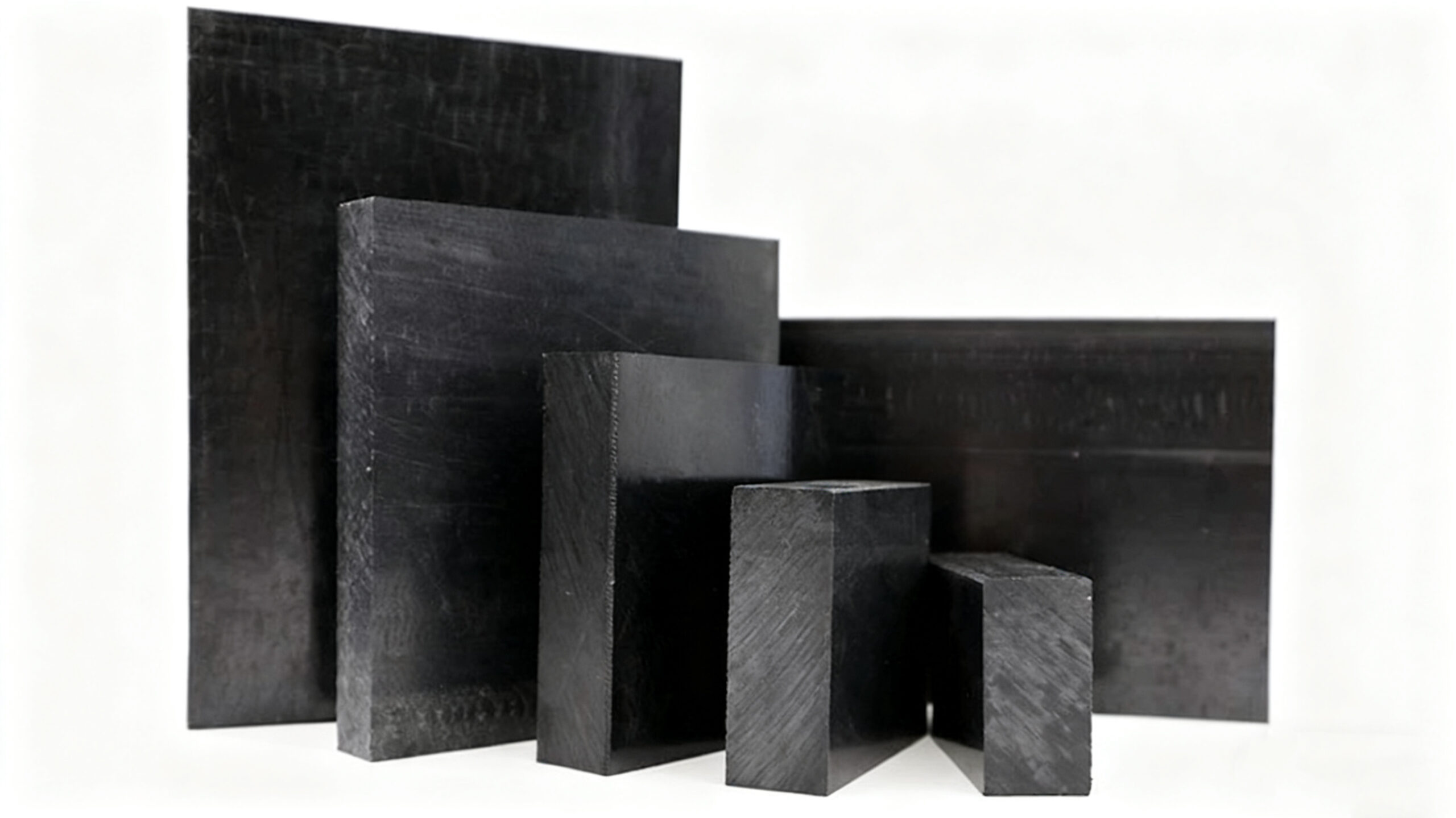

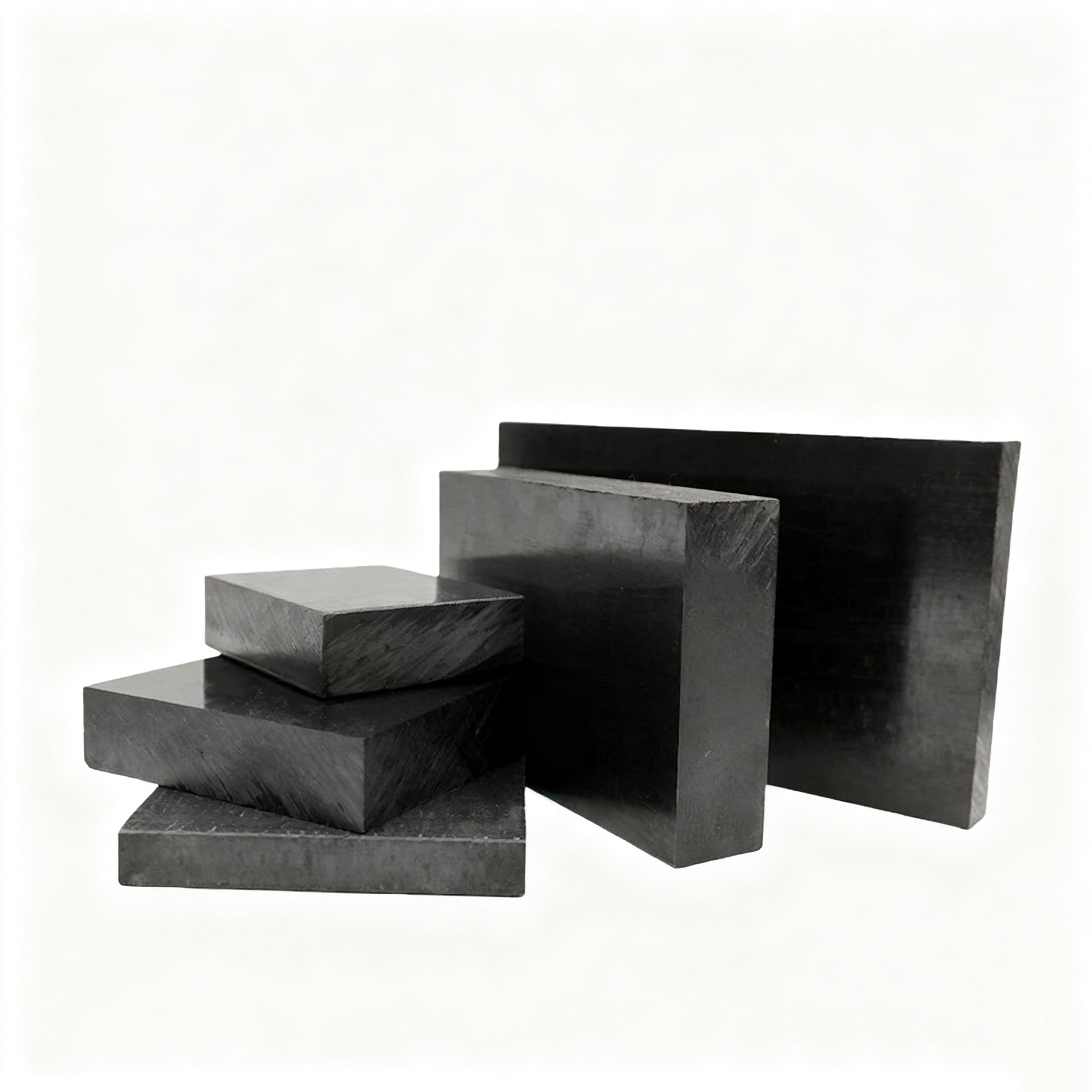

Hansa Carbon-Filled PEEK Sheet

Carbon-Filled PEEK Sheet

  • It has a low density, making it lighter than regular PEEK sheets, which helps achieve lightweight product designs.
  • With a low friction coefficient, it reduces machine wear and energy loss, saving costs.
  • It has excellent insulating properties, making it suitable for use as insulation materials in aerospace or radiation shielding components, as well as electrical components.
  • It is biocompatible and can be used in the medical field for surgical instruments or implantable medical devices.

Description about PEEK Sheet

The addition of carbon fiber to PEEK has several key benefits:

It enhances the rigidity and creep resistance of PEEK material, making it less prone to deformation under prolonged stress.

It also improves its fatigue resistance, ensuring it can withstand repeated loading without easily breaking down.

Carbon fiber-reinforced PEEK sheets combine “high strength” with “lightweight design.”

Color:

Pure PEEK material is light beige, while carbon fiber-reinforced PEEK is black.

Key Features of Carbon-Filled PEEK Sheet

Excellent Mechanical Strength
Low Density
Wear Resistance
Biocompatibility

Specifications of Carbon-Filled PEEK Sheet From Hansa

  • Physical Properties
  • Specification Sheet
Properties Testing Method Unit Result
Tensile Strength(23℃) ISO 527 MPa 250
Elongation(23℃) ISO 527 % 1.5
Melting Point ISO11357 ℃ 343
Conductivity ISO /CD22007-4 W/(mK) 0.95
Dielectric Strength(2mm) IEC 60243-1 kV/mm /
Density ISO 1183 g/cm3 1.44±0.02
Product Size Thickness/(mm) Weight per sheet/(kg)
PEEK Sheet Natural 6*600*1240 6.9 6.85
8*600*1240 8.8 8.81
10*600*1240 11.2 11.14
12*600*1240 13.2 13.33
15*600*1240 16.2 16.24
18*600*1240 18.84 20.16
20*600*1240 21.3 21.14
25*600*1240 26.5 26.67
30*600*1240 32.7 32.66
35*600*1240 37.5 37.35
40*600*1240 42.5 42.57
50*600*1240 53.2 53.29
