Лист ПТФЭ от Hansa
- Применение: Уплотнения и смазки для использования в различных средах, а также электроизоляция для использования на различных частотах. Конденсаторные среды, изоляция проводов, изоляция электроприборов.
- Оборудование для химической обработки, прокладки/вкладыши для трубопроводов, клапанов и реакторов
- Системы фланцевого уплотнения, уплотнительные прокладки для высоких температур/высокого давления (HTHP)
- Износостойкие компоненты, износостойкие накладки с низким коэффициентом трения для линейных направляющих и подшипников
- Коррозионно-стойкие покрытия, покрытия для кислотных баков/гальванн (например, стойкие к серной/азотной кислоте)

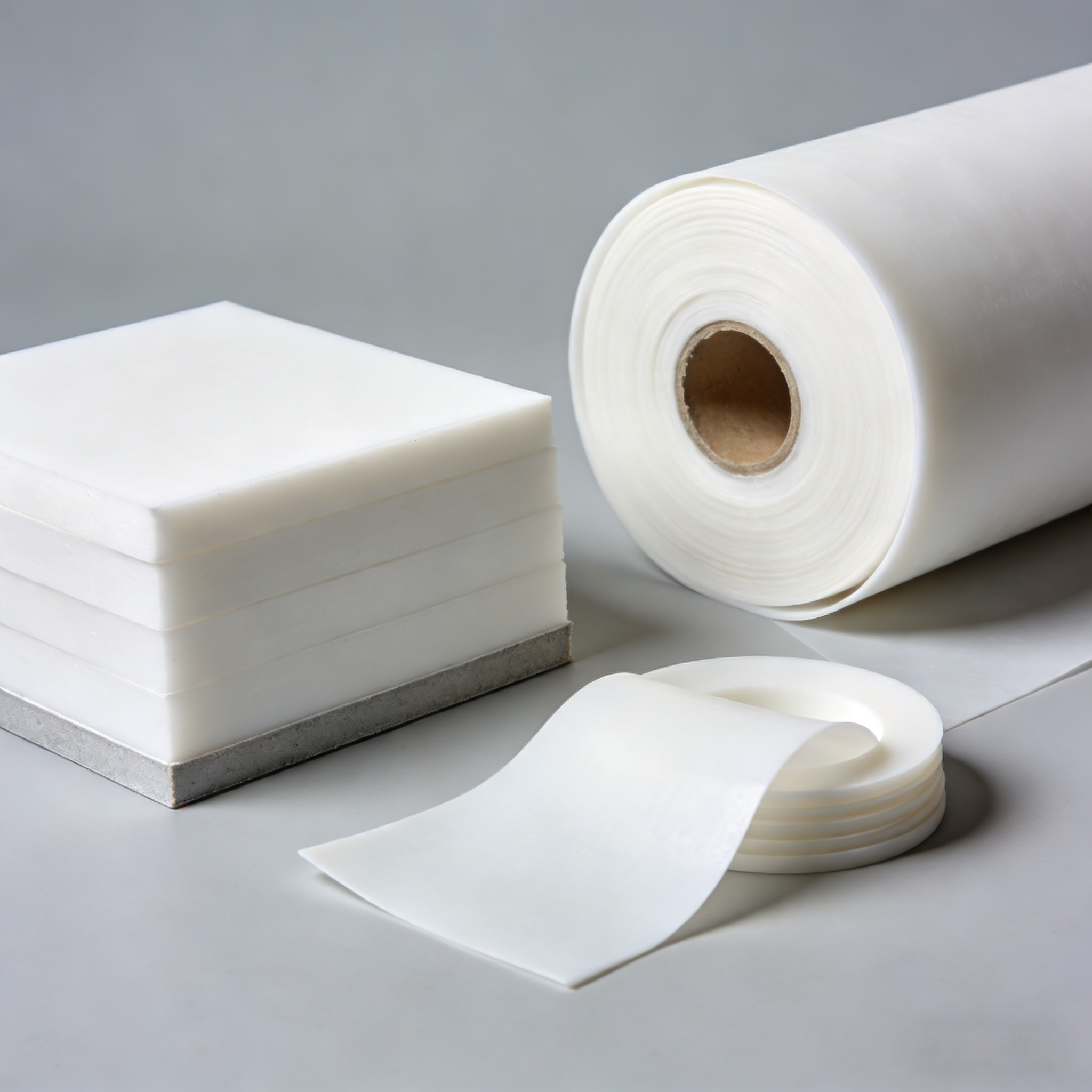

Листы ПТФЭ HANSA
Hansa может поставлять вам различные типы листов или пленки ПТФЭ, независимо от того, нужен ли вам лист ПТФЭ в рулоне, армированный лист ПТФЭ или нарезанный по размеру, мы всегда можем предоставить вам качественный материал. Любой размер, любой цвет, любой тип или любая толщина, просто отправьте нам ваши требования и получите бесплатный образец для проверки качества.
General-purpose PTFE sheets have a temperature resistance range of -180 to 260 degrees Celsius, making them suitable for most industrial applications. They have a low coefficient of friction, and their most notable characteristic is their chemical inertness, meaning they react with almost no chemical substances.
More Different Types Of PTFE Sheet You can Order From Hansa
Существуют различные типы листов ПТФЭ, которые можно классифицировать несколькими способами: 1. По процессу производства 2. По наполнителям/модификациям 3. По цвету 4. По применению 5. По спецификациям 6. Специальные типы, включая пористые листы ПТФЭ (обычно известные как «расширенные плиты ПТФЭ»).
Микропористая структура, изготовленная в процессе растяжения, используемая в фильтрации, производстве дышащих мембран и в биомедицинских областях.
Размеры могут быть настроены, разрешена розничная продажа. МАКСИМАЛЬНАЯ ШИРИНА около 3 метров, МАКСИМАЛЬНАЯ ТОЛЩИНА может достигать 10 мм+
Размеры могут быть изготовлены по индивидуальному заказу, разрешена розничная продажа. МАКСИМАЛЬНАЯ ШИРИНА может достигать 2 метров, МАКСИМАЛЬНАЯ ТОЛЩИНА составляет около 600 мм.
Специализированные составы наполнителей для смягчения хладотекучести в ПТФЭ с синими стеклянными микрошариками, белым сульфатом бария, желтым кремнеземом.
Поверхность политетрафторэтилена после обработки натрием становится гидрофильной, что позволяет склеивать ее обычным клеем, что расширяет область ее применения.

Изготовлено методом экструзионного формования, подходит для применения с более тонкими листами и обеспечивает высокую эффективность производства.

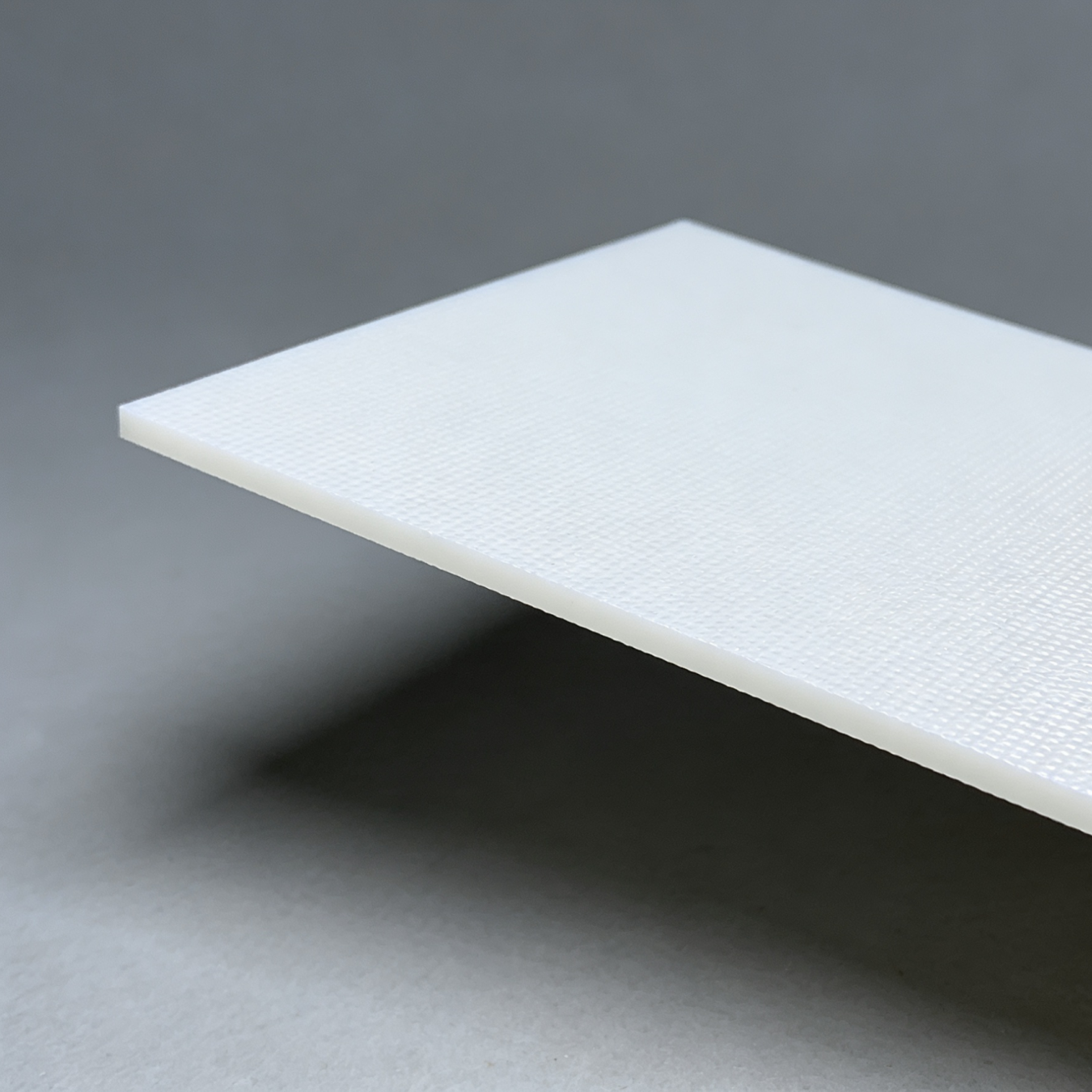

In fact, it involves bonding a fiberglass cloth to one surface of a PTFE skived sheet, giving it the ability to adhere to other surfaces and simultaneously overcoming the limitation of PTFE’s inability to be welded.

This is commonly used in the electronics industry, particularly in the flat panel display industry. Due to PTFE’s excellent high-temperature resistance and impact resistance, it effectively prevents conductive adhesive from overflowing and contaminating the substrate.

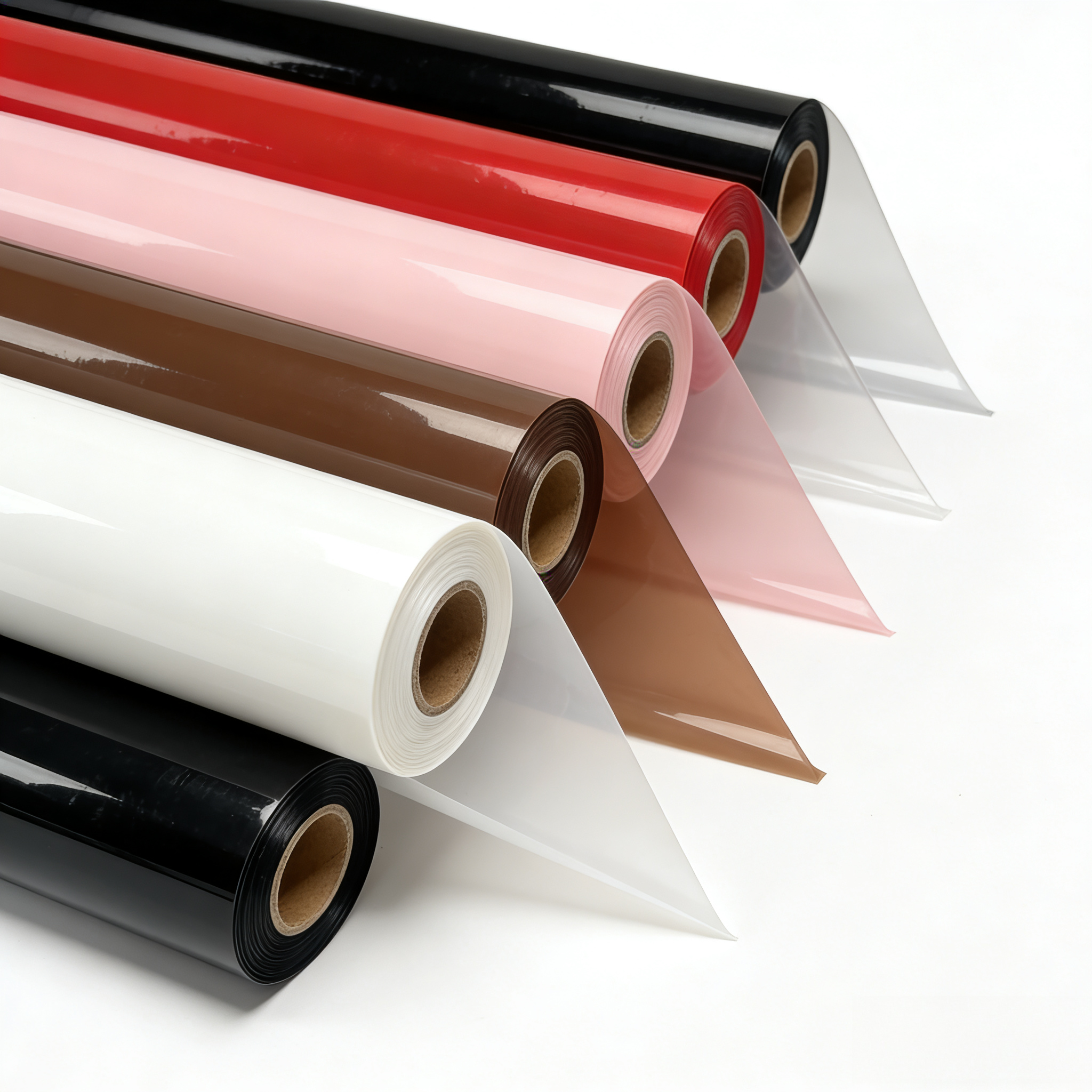

It comes in a variety of colors and serves for identification or decorative purposes. It is commonly used for wire harness classification, pipeline identification in the chemical industry, and as a decorative waterproof layer in high-end buildings.

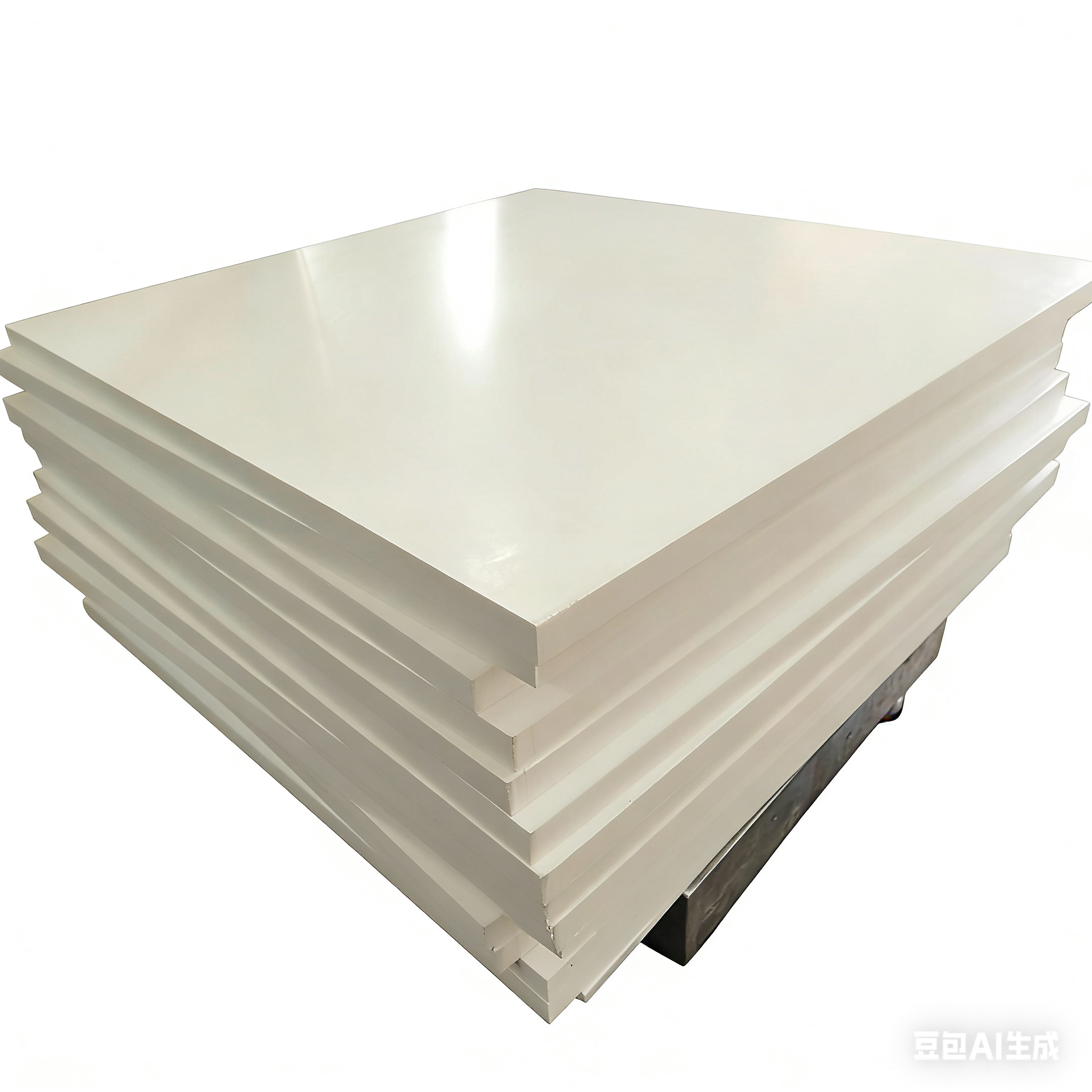

The glass fiber content is typically 15-30%, which greatly improves the mechanical strength of the PTFE sheet, making it twice as strong as general-purpose PTFE sheets and allowing it to maintain dimensional stability under high-pressure conditions.

With a copper powder content of 20-40%, it exhibits excellent thermal conductivity, 5-10 times that of ordinary PTFE sheets, but its corrosion resistance is reduced, limiting its use to neutral corrosive media.

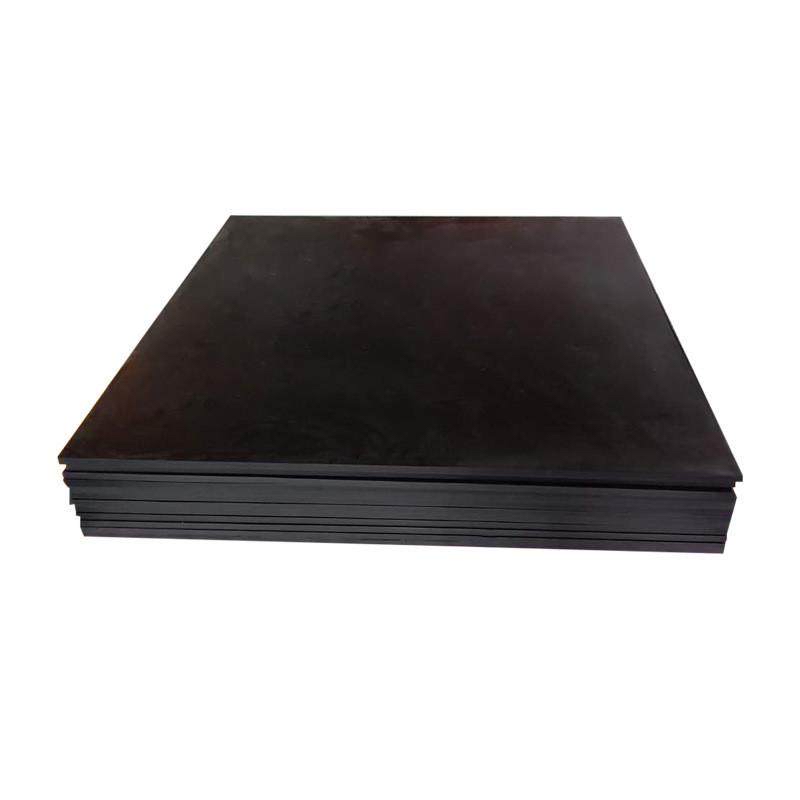

Typically, increasing the graphite content by 10-25% enhances the self-lubricating properties of general-purpose PTFE sheets, resulting in a very low coefficient of friction. However, it also leads to lower hardness, and the price is slightly higher than that of standard general-purpose PTFE sheets.
Основные характеристики листов ПТФЭ

Демонстрирует высокую устойчивость к сжатию и ползучести при температуре окружающей среды, хотя может размягчаться при повышенных температурах, подходит для применений с низкими напряжениями.

Коэффициент трения (COF) составляет всего 0,04, что обеспечивает гладкую поверхность с самосмазывающимися свойствами, что исключает необходимость использования внешних смазочных материалов.

Обладает коррозионной стойкостью, способен выдерживать воздействие агрессивных веществ и большинства химических сред (рН 0-14).

Рабочий диапазон составляет от -200°C до +260°C для длительной эксплуатации, с допустимым кратковременным воздействием до 300°C.
Применение листа ПТФЭ
Промышленный: Уплотнения, прокладки, подшипники, компоненты клапанов и прокладки для труб и резервуаров.
Электроника: Изоляция для печатных плат, разъемов и электронных компонентов;
Автомобильный: Втулки, шланги и покрытия для топливопроводов;
Еда и напитки: Конвейерные ленты, формы и контейнеры;
Медицинский: Катетеры, имплантируемые устройства и лабораторное оборудование.


Your Benefits
- HANSA possesses a complete product quality control system and holds certifications such as FDA, RoHS, and ISO, ensuring that our product quality meets international standards.
- HANSA offers customized services to meet your specific needs regarding the size, thickness, color, or filler materials of PTFE products, ensuring that the products fully meet your expectations. Our professional staff will stay in contact with you to answer any questions you may have.
- HANSA products offer both quality and competitive pricing, focusing on value for money. This not only saves you procurement costs but also eliminates concerns about delivery times. If you order standard products, we have ample stock and can guarantee shipment within 7 days. For customized products, we promise you will receive your order within the agreed timeframe, thanks to our stable and long-term international logistics partners.
- HANSA has 30 years of experience in the production of PTFE products and possesses mature manufacturing and processing technologies. Our sales team is professional and highly responsible, with 20 years of experience in the industry, and can provide comprehensive technical support.
Mature inventory management system
We maintain a readily available stock of standard PTFE sheets, and we have a dedicated inventory management system to facilitate the tracking and management of our stock. When you need to order specific specifications, we can accurately check the current quantity in stock and supply them promptly to meet your urgent needs.
Stable logistics partners
HANSA has established long-term partnerships with three international logistics companies: FedEx, DHL, and UPS, to meet your transportation needs to the greatest extent possible. For packaging, we use wooden crates with foam padding to protect your products and prevent damage during transit.
Company Resource
Is PTFE sheet suitable for your project? If you’re unsure, please contact us, and we will arrange for a professional to assist you. Here is our company’s catalog, which you can download and view.
Do you have doubts about product quality? Worried that the product you receive won’t be what you expected? HANSA can alleviate your concerns, as we provide professional test reports and product certificates. Click to learn more!
HANSA has professional personnel equipped for molding, turning, and CNC machining operations. This is our promotional video, which will allow you to learn about our company in the shortest possible time!
Typical Application Scenarios for PTFE Sheets

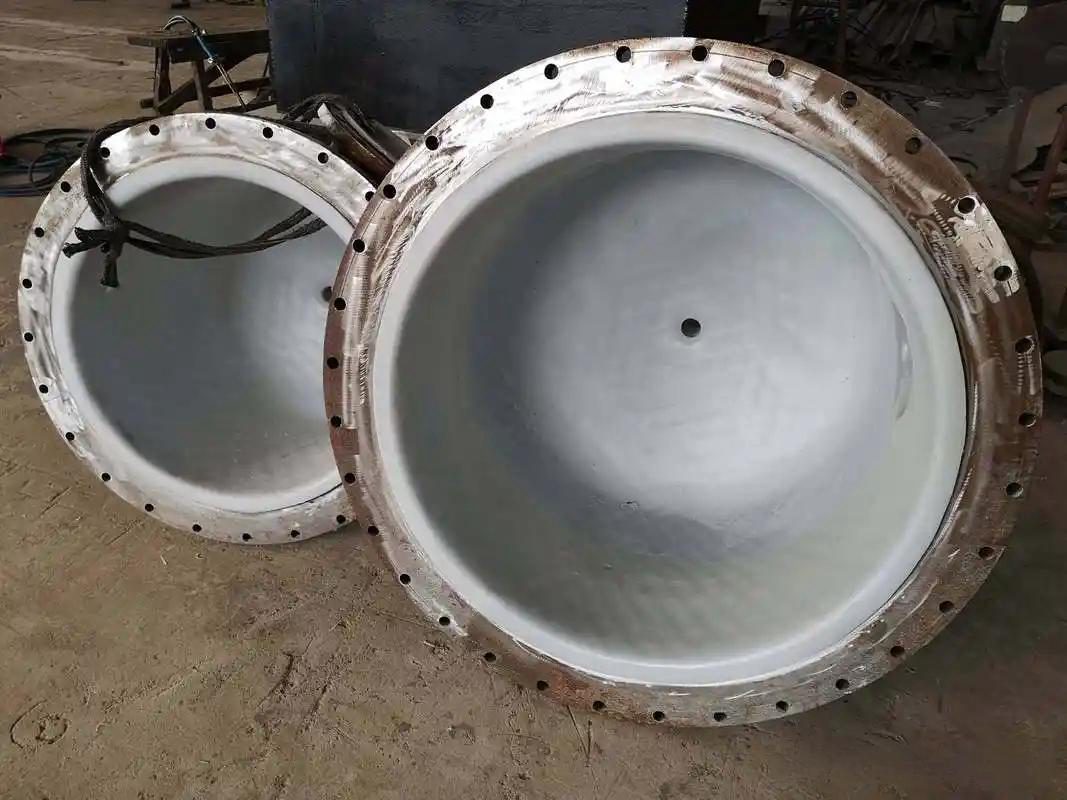

The most classic application of PTFE skived sheets is as a lining for chemical reactors, because PTFE has excellent chemical inertness and hardly reacts with any chemical substances, making it resistant to strong acids, strong bases, and other corrosive liquids. After adhesive treatment, the PTFE skived sheet adheres tightly to the reactor, and our professional technology ensures that it will not detach, extending the service life of your chemical equipment.

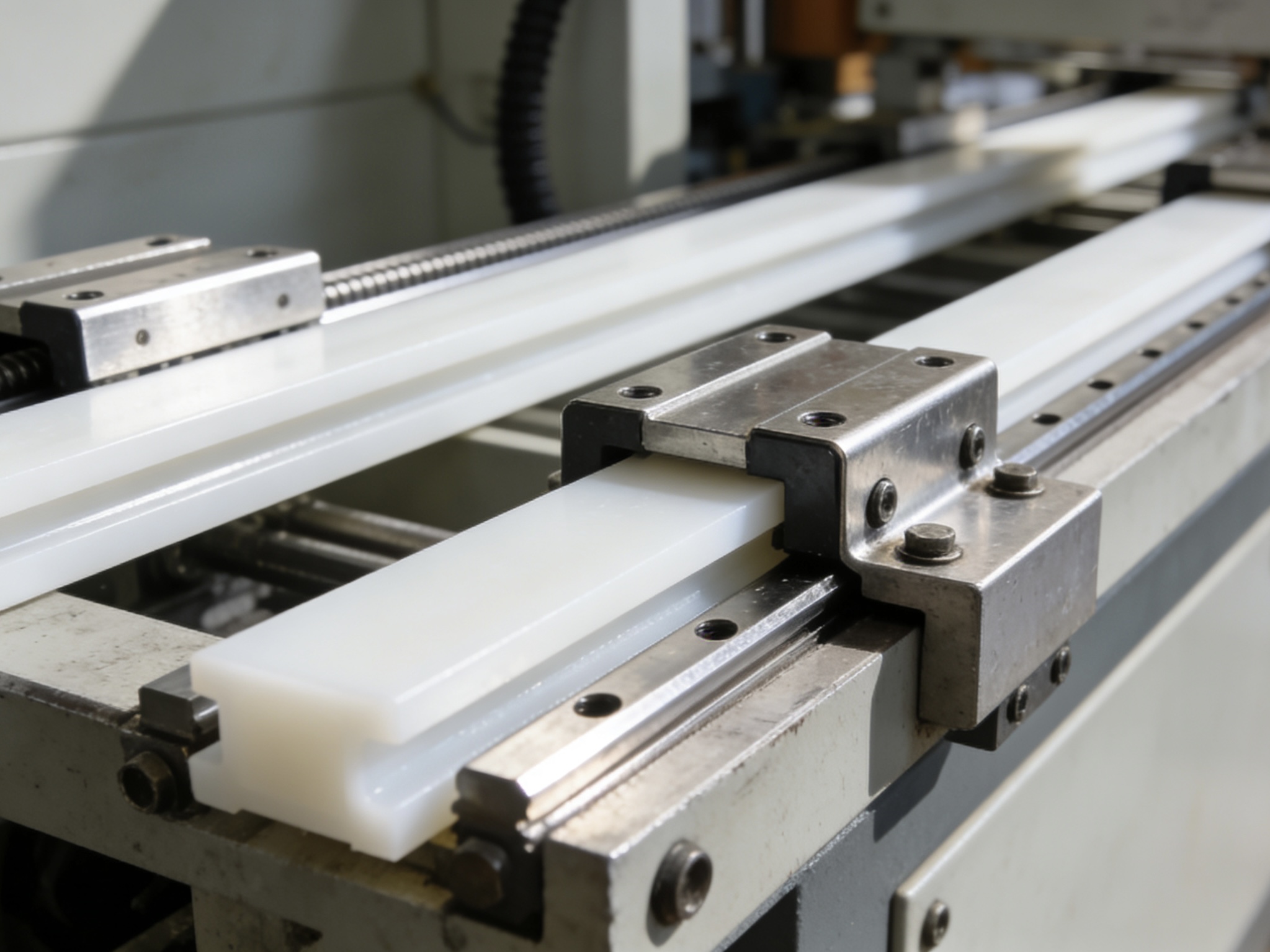

Due to PTFE’s extremely low coefficient of friction (only 0.04) and excellent self-lubricating properties, it is widely used in the manufacture of sliding bearings, guide rails, and piston rings, which can reduce equipment wear and save on production costs.

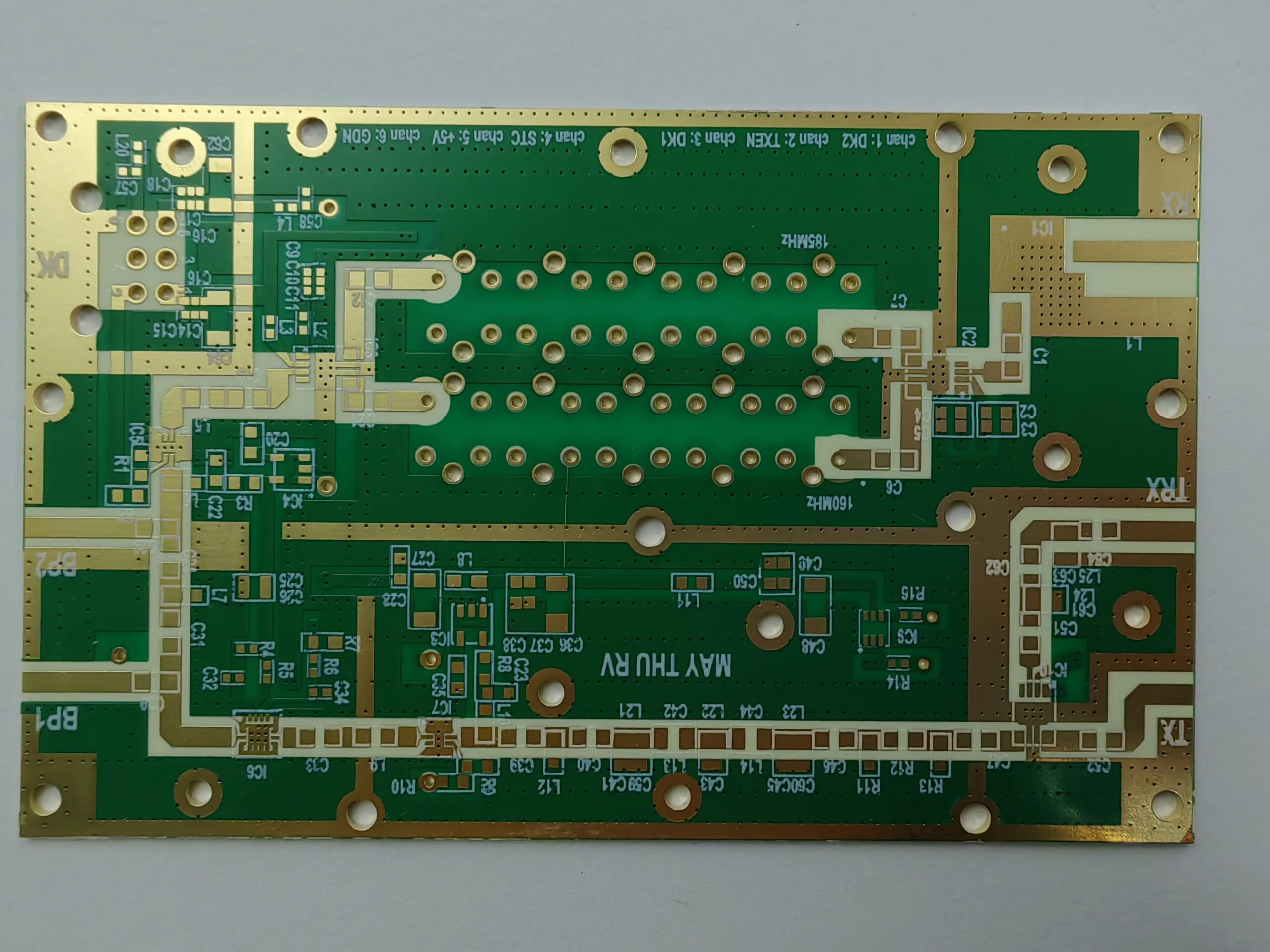

After processing, PTFE sheets can be used as substrates for printed circuit boards (PCBs), insulating gaskets, etc. This is because PTFE has excellent insulation properties, high temperature resistance, and very low dielectric constant and loss factor, resulting in minimal signal transmission loss.

There are specialized medical-grade PTFE materials used in high-end medical equipment, such as sterile seals or artificial heart valves. There is also food-grade PTFE, specifically labeled as harmless to humans, which can be used as a lining for household baking utensils, such as non-stick pans and oven trays.
Технические характеристики модифицированного ПТФЭ от Hansa
- Описание размера
- Свойства первичного ПТФЭ
- Etched PTFE Properties
- Модифицированный лист ПТФЭ
| Тип | Size Description |
| Формованный лист ПТФЭ | Regular size is Square: width x Length, from 150mm – 2000mm
Thickness: 4mm – 500mm |
| Лист ПТФЭ строганный | Width 300,400,500,800,1000,1200,1300,1400,1500,1600,1800,2000,2200,2500,2700mm ,Length ≥200
Thickness: 0.1-6.5mm |

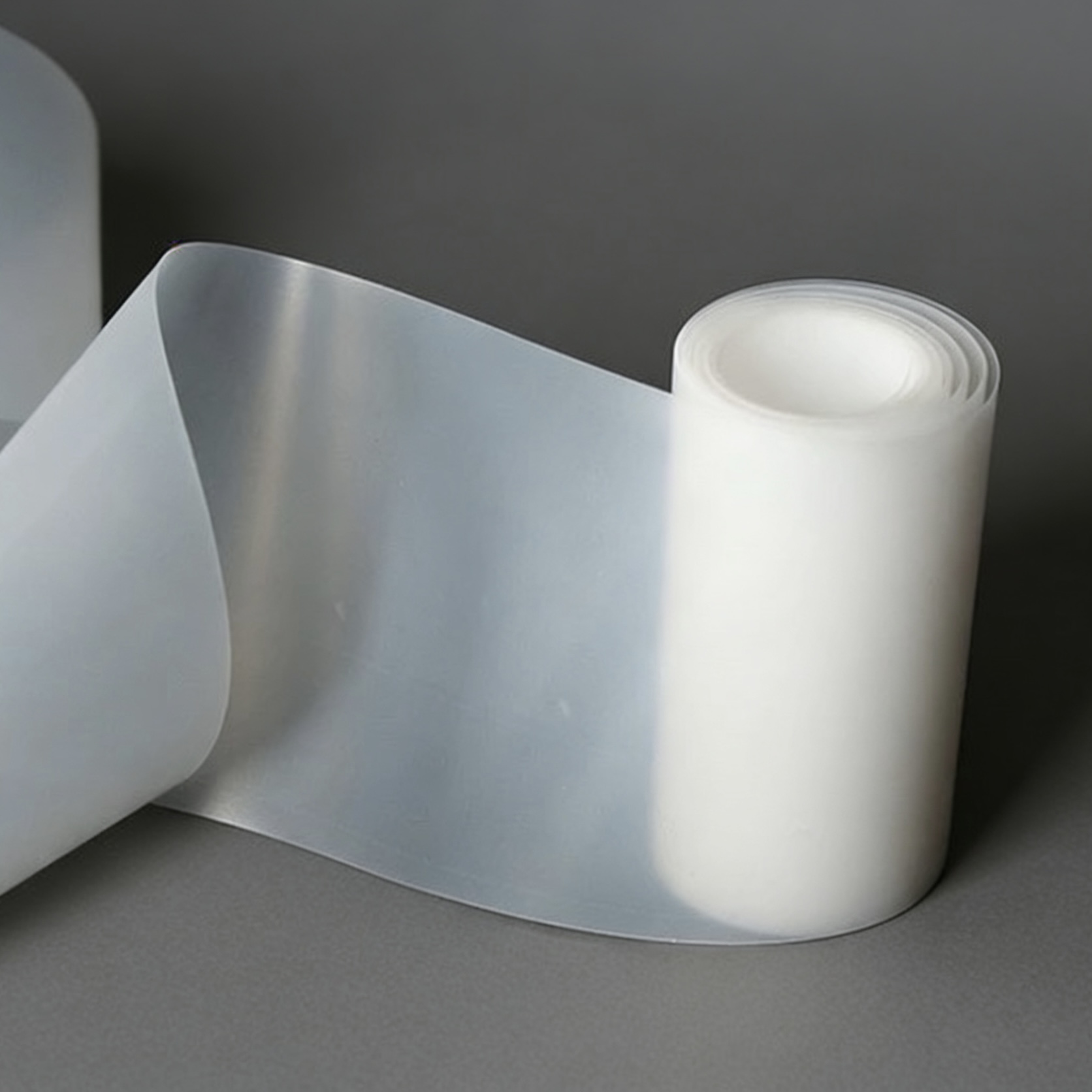

| PTFE Film | Thickness: 0.02-0.5mm
Length ≥100 |
| Расширенный лист ПТФЭ | Width and Length: regular 1500*1500
Thickness: 0.5-10mm |
| Характеристики | единица | Результат |
| Кажущаяся плотность | г/м² | 2.10~2.30 |
| Прочность на разрыв (мин) | МПа | 15.0 |
| Удлинение при разрыве (мин) | % | 150 |
| Диэлектрическая прочность (мин) | КВ/мм | 10 |
| Характеристики | Единица | Результат |
| Плотность | g/cm³ | ≥2.18 |
| Предел прочности | МПа | ≥30 |
| Удлинение при разрыве | % | 300 |
| NO. | Filled Compound And | Прочность на разрыв МПа мин | Предельная прочность % мин. | Compression Strength Mpa |
| Content By Wt | min | |||
| 1 | 20% Стекловолокно | 10 | 120 | 16 |
| 2 | Стекловолокно 25% | 10 | 100 | 16 |
| 3 | 20%Стекловолокно 5%Графит | 10 | 120 | 16 |
| 4 | 60%Бронза | 10 | 80 | 20 |
| 5 | 15%Carbon Fiber | 11 | 130 | 16 |
| 6 | 24%Bronze 12%Glass Fiber | 9 | 100 | 16 |
| 6%Carbon | ||||
| 7 | 15%Glass Fiber 10% Poly – | 10 | 120 | 16.7 |
| imide5%Graphite |
Teflon and PTFE are essentially the same thing, both referring to the material polytetrafluoroethylene. The difference is that Teflon is a registered trademark, originally owned by DuPont, and now owned by Chemours, an independent company spun off from DuPont.
- Difficult to Process, High Cost: Due to PTFE’s unique properties, it has an extremely high melting point and requires special processing techniques, like “cold pressing,” which is time-consuming and requires specialized equipment. This makes PTFE expensive and challenging to process.
- Poor Creep Resistance: Compared to materials like nylon and PEEK, PTFE has lower hardness and rigidity. In practical applications, if PTFE is continuously under pressure, it may permanently deform over time.
- Decomposes and Releases Toxins at High Temperatures: When PTFE is exposed to temperatures above 260°C for long periods, it begins to break down and release toxic substances. At temperatures exceeding 350°C, the decomposition process accelerates, releasing harmful fumes.
- Non-Biodegradable: PTFE’s high thermal stability prevents it from naturally degrading. Recycling PTFE requires high temperatures, which can release toxic by-products, leading to environmental pollution and potential harm to human health.
The lifespan of PTFE depends on its application environment. Under clean conditions and normal operating temperatures, PTFE can last for 10-50 years. However, if it operates under high pressure for extended periods, its lifespan will be significantly shorter, possibly only 7-8 years, or even 4-6 years. Of course, this also depends on the grade of the PTFE material.
Currently, there are two methods for recycling PTFE:
- Mechanical Recycling: PTFE is ground into fine powder, compacted, and then sintered at a high temperature of 370°C.
- Chemical Recycling (also known as Pyrolysis): When exposed to temperatures over 400°C, PTFE decomposes into tetrafluoroethylene monomers.
After receiving the goods, you can quickly perform an acceptance inspection. First, check if the PTFE sheet is milky white and free of color variations. Secondly, measure its volume and weight to calculate the density of the PTFE sheet. If the density is within 2.1-2.2 g/cm³, it is considered acceptable. If you have sufficient time, you can immerse it in concentrated sulfuric acid solvent, observe it for 24 hours, then remove and weigh it. Compare the weight to the weight upon receipt; if the change rate is no more than 1%, and there are no cracks on the surface, it is considered acceptable.
PTFE, commonly known as “the king of plastics,” boasts excellent overall performance and is suitable for most applications. It also has a long service life, lasting 10-50 years or more. We can develop customized solutions for your specific project, providing personalized professional service to address your concerns.
Yes, PTFE is available in different grades, including general-purpose, food-grade, and medical-grade. Each grade is suitable for different applications. Furthermore, the raw materials for PTFE also vary, with different brands available from manufacturers such as DuPont and Daikin. In addition, there is both pure PTFE and recycled PTFE.
If you’re simply cutting PTFE sheets, you can do it yourself. For thin sheets, you can score the surface with a utility knife and then easily break it apart by hand; for thicker sheets, you’ll need a saw. First, secure the sheet, then mark the cutting line, and finally, saw along the marked line. However, if your project is large and involves a significant amount of PTFE sheets, you’ll need to use a CNC machine for cutting. This will greatly improve efficiency, but it may increase your costs.
Сопутствующие товары
Листы ПТФЭ
Листы политетрафторэтилена чаще всего называют листами ПТФЭ. Или вы также можете называть их листами Тефлона. Конечно, эти два названия относятся к одному и тому же продукту, за исключением того, что «Тефлон» — это ПТФЭ, произведенный компанией DuPont.
Вообще говоря, эти листы сделаны из фтора и углеродных связей. Отсюда и название — политетрафторэтилен.
Из-за сильных углеродных связей они считаются высокомолекулярными листами. Причина, по которой они распространены во многих приложениях сегодня.
Типы ПТФЭ Доступные листы
Для классификации тефлоновых листов можно использовать широкие критерии. Это связано с широкими возможностями настройки.
В идеале вам может понадобиться:
- Листы ПТФЭ с клеем – имеют клеевую подложку на одной поверхности
- Листы ПТФЭ, разрезанные по размеру – ПТФЭ разрезается в соответствии с вашими конкретными требованиями
- Листы различной толщины – вы можете выбрать лист ПТФЭ толщиной 3 мм или 100 мм.
Короче говоря, доступные опции зависят от уникальных возможностей настройки. Что еще более важно, это также определит цену листа ПТФЭ.
Листовой материал ПТФЭ общего назначения
Конечно, кастомизация делает листы Teflon подходящими для очень специфических применений. Однако вы можете выбрать листы PTFE общего назначения.
| Свойства листового материала ПТФЭ | Рейтинг |
| Предел прочности | Бедный |
| устойчив к ультрафиолетовому излучению | Хороший |
| Твёрдость | Средне-мягкий |
| Ударная вязкость | Хороший |
| Размеры | Размеры могут быть разными, но могут быть от 6 на 6 дюймов до 48 на 48 дюймов. |
Листы ПТФЭ, наполненные стеклом
Если вы ищете листы с улучшенной механической прочностью, ударопрочностью и износостойкостью, то выбирайте листы со стекловолокном. В большинстве случаев эти листы имеют около 25% стекловолокна
Характеристики листов политетрафторэтилена
Есть много причин выбрать эти простыни:
- Высокая температура плавления делает смолу идеальной для большинства случаев длительной эксплуатации.
- При высоких температурах материал ПТФЭ останется стабильным. Диапазон температур составляет от -200°C до +260°C.
- Известны превосходными антипригарными свойствами
- Превосходные изоляционные свойства
- Коэффициент трения относительно низкий
- Лучшая коррозионная стойкость, чем у стандартного пластика
- Они гидрофобны – имеют тенденцию отталкивать воду.
- Химически инертный
- Одобрены FDA?
- Чувствителен к гамма-излучению
Иногда ваш чистый лист ПТФЭ не будет предлагать все эти характеристики. Причина, по которой вам необходимо усилить материал ПТФЭ. Эти листы изготавливаются из чистой политетрафторэтиленовой смолы 100%.
Давайте сравним два интересных листа:
| Лист из первичного ПТФЭ | Механический лист ПТФЭ |
| · Изготовлен из чистой политетрафторэтиленовой смолы 100%
· Высокие физические свойства · Обычное применение · Никаких дополнительных добавок |
· Изготовлен из переработанной политетрафторэтиленовой смолы.
· Низкие физические свойства · Высокопроизводительные приложения · Наполнен добавками для улучшения свойств |
Формы, в которых можно отправлять листы ПТФЭ
Эти материалы можно получить как в плоском, так и в рулонном виде. Способы упаковки зависят от толщины листа.
В большинстве случаев рулоны листов ПТФЭ имеют толщину менее 0,093″. В противном случае прокатка листов политетрафторэтилена большей толщины не рекомендуется.
Использует
Листовой материал ПТФЭ можно подвергать механической обработке или изготавливать из него различные детали, например:
- Прокладки из ПТФЭ
- Втулка из ПТФЭ
- Подкладка из ПТФЭ
- Скользящая пластина из ПТФЭ
- Электроизоляционные детали из ПТФЭ
- Шайбы из ПТФЭ
